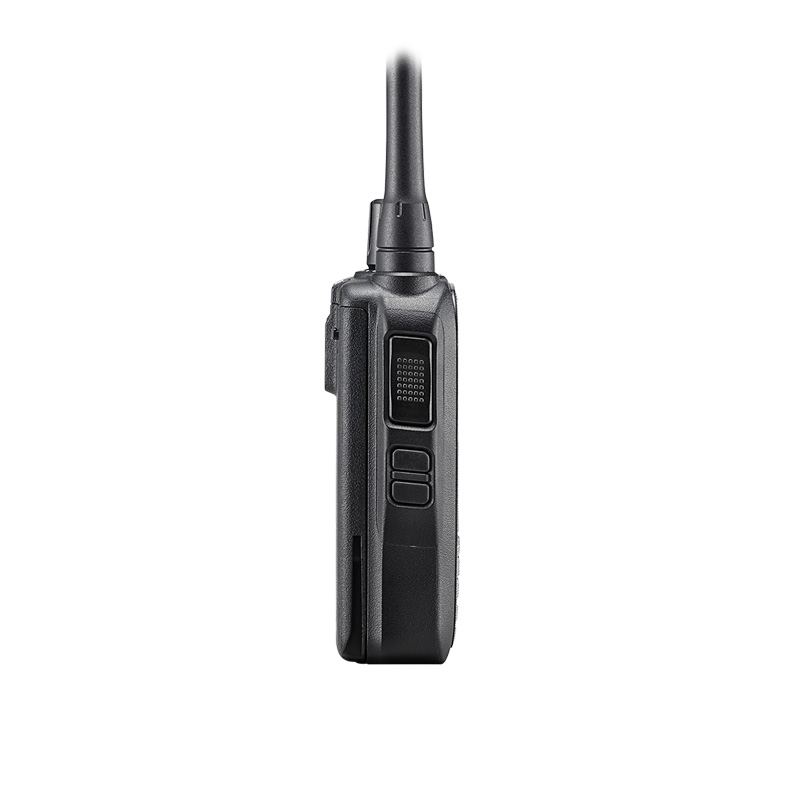

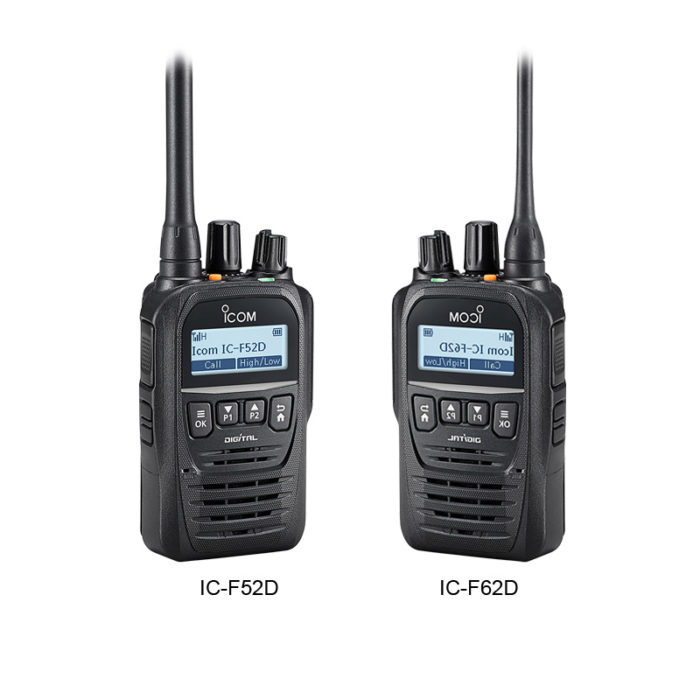

IC-F52D / IC-F62D

IC-F52D / IC-F62D

Out of stock

VHF and UHF-DIGITAL-Handfunkgeräte

The IC-F52D series is a next generation IDAS™ handheld radio. It not only inherits technical design advantages from the IC-F3400D series, but also offers state-of-the-art improvements, while applying size and usability from the hugely popular IC-F50V/IC-F50 series analog models. The IC-F52D series is a true mixture of legacy and modern technology in one of the most compact packages available today.

Description

Small, light and feature packed

Multiple operating modes

  • Analog FM
  • NXDN™/dPMR™ conventional
  • Upgradable to NXDN™ Type-D trunking
  • Upgradable to dPMR™ Mode 3 trunking*

* Not available in all regions.

Full dot-matrix display, rotary channel and volume knob for simple every-day operation

Built-in Bluetooth®, voice recording, active noise cancelling functions

Motion/stationary detection, man down and lone worker functions

OTAP (Over-the-Air Programming) function easily reconfigures in-the-field radios

Intelligent battery management helps to extend the battery life

General Features

  • 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
  • 512 CH / 128 Zones
  • 14 character dot-matrix display with status icons
  • Improved user interface
  • Programmable functions and menu items in a language other than English
    (For example French, Spanish, German, Russian and Turkish)
  • Backlit LCD and buttons

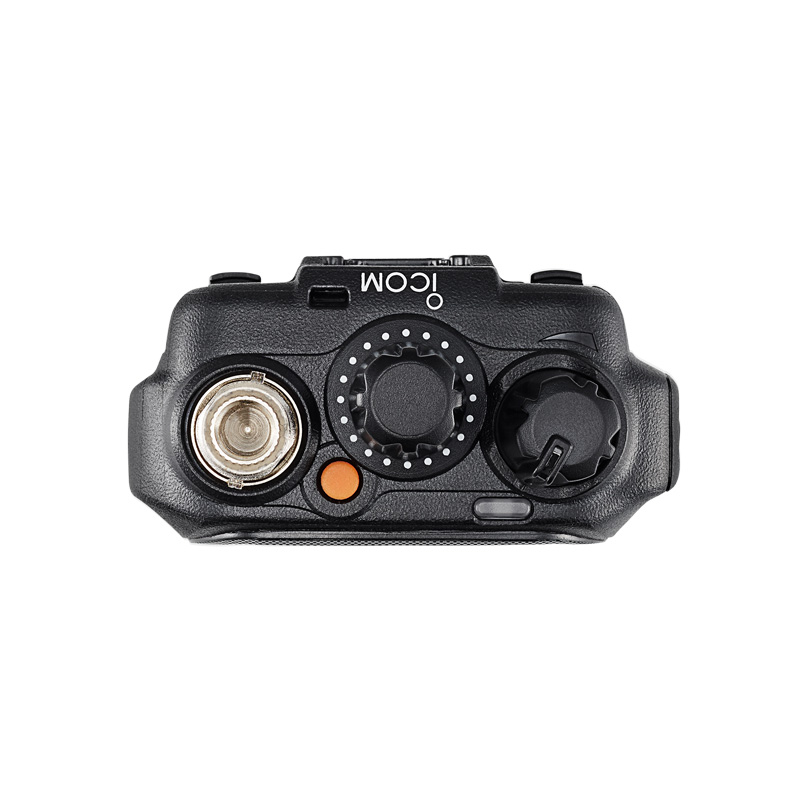

  • Continuous rotary knob and ON/OFF volume knob
  • 1300 mW loud and intelligible internal speaker audio
  • MIL-STD-810 G shock, vibration, temperature and more
  • IP67/66/55/54 waterproof & dust-tight protection
  • 29 mm (1.1 inch) slim dimensions (with BP-290 battery pack)
  • Intelligent battery information
  • License key upgrade (trunking)

Operating Mode

  • NXDN or dPMR mode 1/2 conventional
  • NXDN or dPMR multi-site conventional over IP network
  • NXDN type-D single/multi-site trunking*
    * License key (ISL-UGMTR) required
  • dPMR mode 3 trunking*
    * License key (ISL-UGMD3) required. Not available in all regions.
  • 12.5 kHz digital mode (NXDN conventional)
  • Analog mode
  • Analog/digital mixed operation

Digital Functions (Voice and Data)

  • AMBE+2™ vocoder
  • Over-the-Air Programming (OTAP) function*
    * OTAP manager (CS-OTPM1) required
  • Over-the-Air Alias (OAA) sends own name with a call
  • Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (NXDN type-D trunking)
  • Direct mode communication
  • Individual, group and all call
  • Late entry for group call
  • Status call and polling
  • Short data messages
  • Call alert (NXDN)
  • GPS position data (Optional HM-233GP required)
  • Transparent data mode

Analog Functions

  • CTCSS and DTCS tone
  • 2-Tone and 5-Tone
  • MDC functions (Depending on version)
  • BIIS 1200 (MSK)
  • LTR™ trunking (Depending on version)
  • DTMF autodial

Security and Safety

  • Digital voice scrambler (Low level encryption)
  • Analog voice scrambler (Inversion)
  • Power ON password
  • Tactical group temporarily reconfigures user talkgroups
  • Radio stun/revive/kill
  • Remote monitor (NXDN)/Ambience listening (dPMR)
  • Emergency key for emergency call
  • Man down function
  • Lone worker function
  • Motion/stationary detection

Scan Functions

  • Priority scan
  • Voting scan for site roaming

Voice/Audio Functions

  • Voice announcement (Channel number and zone)
  • VOX function for hands-free operation
  • Voice recording/playback (Up to 8 minutes)
  • TX/RX active noise canceller
  • TX/RX audio equalizer
  • Audio compander (Analog mode)

Hardware

  • Programmable vibration alert
  • Built-in Bluetooth® for wireless audio and data
  • Variety of optional audio accessories including speaker-microphones, headsets and earphones
  • Optional HM-233GP GPS speaker-microphone
  • 14-pin accessory connector
  • Wireless radio programming over Bluetooth®



Technical specifications

Please refer to this information in the product brochure.

Supplied Accessories

Battery Pack BP-290 | Belt clip MBB-3 | An antenna that meets the requirements as well as a charger with power supply are to be purchased separately

Further information can be found in the download area
