VHF and UHF DIGITAL handheld radios

IDAS™ Takes You To a New Level of “Smart”

Icom introduces an advanced generation of IDAS digital industrial radios. The entire new series comes in a cutting-edge design, delivering world-class performance and many thought-out features – all based on a flexible and upgradeable multi-protocol platform.

Icom’s product quality is legendary: perfect technology for demanding users of the new IDAS series.

Description

Refinements and enhancements to design, usability and features – combined with the electrical and industrial hardware improvements – further the total reliability of the new IDAS series. This reliability ranges from the “zero adjustment”, non-variance production quality of every radio made to a new and stress-free user experience that masks the real complexity behind this multi-protocol platform. Icom’s product quality is legendary. Look smart and work smart with the new IDAS series. Using is believing.

Small, Slim and Smart
The compact body is made possible from new engineering techniques including the use of a custom SoC (System-on-a-Chip) and flat sheet keypad. The slim dimensions are also supplemented with reduced power consumption, allowing for a thinner battery pack.

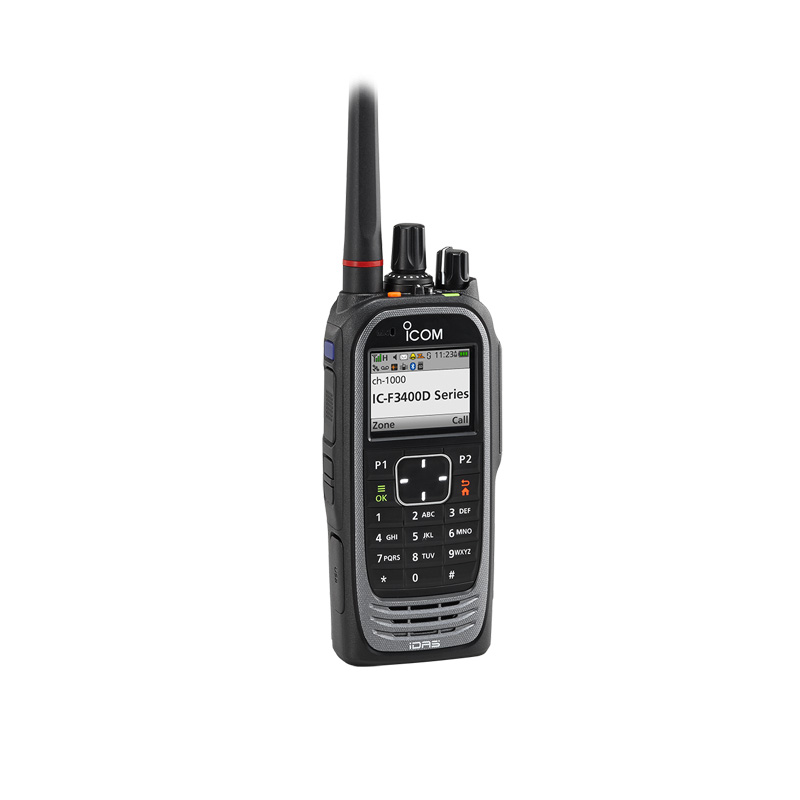

Color LCD and improved User Interface
A high-resolution color LCD and new user interface is adopted. The color LCD enhances the visibility both in natural and indoor lighting, with the night mode LCD setting as an alternative for use in night time or low lighting conditions. Functions can be easily set by following easy to understand icons and menu items.

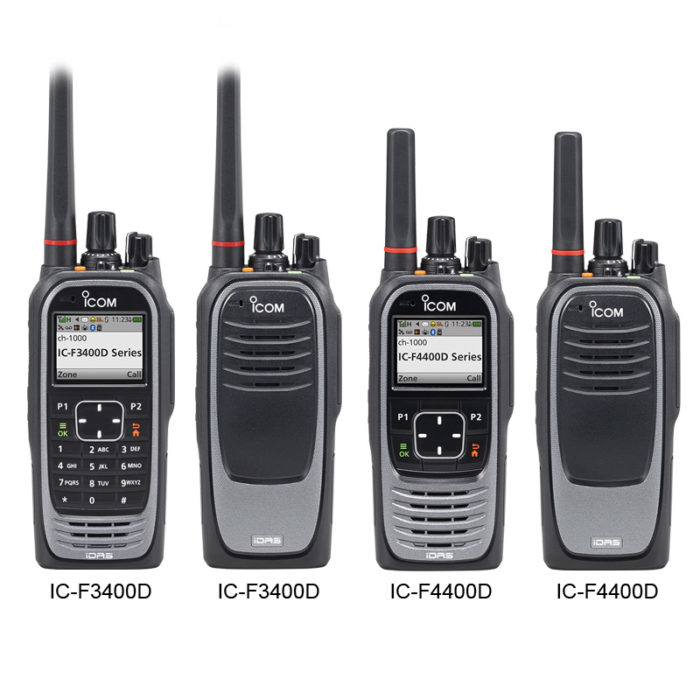

* For IC-F3400DT/F3400DS/F3400DPT/F3400DPS/F4400DT/F4400DS/F4400DPT/F4400DPS (Display type)

"/
Tag-Modus
Nacht-Modus
Menüpunkte

Multiple Languages
Functions and menu items can be programmed in a language other than English. Cyrillic and Simplified Chinese fonts are supported.

License Key Upgrade
Necessary functions such as trunking capability, channel capacity, AES encryption and other functions can be added with license key options. The IDAS radios can be upgraded and customized to meet your specific needs.

Mix Mode Operation (NXDN conventional and dPMR Mode 1/2)
The IDAS radio can receive both analog and digital mode signals on a channel and can reply either in analog or digital mode according to the received mode. You can partially introduce the IDAS radios, while still using the existing analog radios in a system.

AES/DES Encryption with Over-the-Air-Rekeying (OTAR)
For digital communication security, the IDAS radio provides basic 4-key DES encryption as standard and upgraded to 64-key DES with the optional UT-134. When used with the optional UT-134 and license key (ISL-AKAES), the AES encryption with the OTAR function are available. The OTAR function allows updating of encryption keys over the radio channel.
* The OTAR manager software (CS-OTAR1) is required.

OTAP and OAA
The OTAP function allows you to distribute a radio configuration file over-the-air to update the IDAS radios. Save considerable time with no need to return the radio for reprogramming.
* OTAP manager software (CS-OTPM1) is required.

The OAA function sends own alias name with a call to receivers and automatically shows the callers name on the receivers display. It eliminates the need to program the call list to each radio, when a new radio is entered or existing radio is passed to another person.

Hands-Free Operation with Bluetooth® Headsett
The built-in Bluetooth® module provides remote operation and hands-free communication paired with a third-party headset (for example, 3M™ Peltor™ WS™ 5 series)*.
Available functions depend on paired Bluetooth® devices. Icom does not guarantee all functions and performance of the Bluetooth® headset.

Digital Voice Recording
The IDAS radio can record incoming and outgoing calls, and the user can check recorded communications just in case. When a 32 GB microSD* card is used, a Max. 500 hours of recording is possible. The following information can be embedded in the WAV file; user IDs, GPS position, frequency, AF volume, RSSI, etc.
(Depending on setting).
* A microSD card is required separately.

Emergency Call by Man Down and Motion/Stationary Detection
To remotely monitor worker safety, the IDAS handheld radio has four emergency related functions: motion detection, stationary detection, man down and lone worker functions. If one of these functions are activated, the radio automatically sends an emergency signal.

Transparent Data
The IDAS radio can be used as a transparent data modem which transmits various data up to 3600 bps over the radio channel. The NXDN 12.5 kHz digital mode doubles the data speed.

Active Noise Canceller
The active noise canceller assists in providing clear audio, while suppressing background noise. The function improves both your transmitted voice and incoming call. The radio user does not need to shout into the microphone even under extremely noisy environments.

Audio Equalizer Effect
The audio equalizer allows you to tailor the audio tone to optimize voice quality in various use environments.

  • 14-pin ACC connector with BTL amplifier output
  • AquaQuake™ draining function clears water away from the speaker grill
  • Audio compander
  • Beat cancel

Built-in GPS Receiver
The position data can be sent with voice call or status call and can be used with a third-party AVL (Automatic Vehicle Location) system. The GPS log functions logs user position data at regular intervals.

USB Port for PC Connection
The IDAS radio can be connected to a PC through a USB port for programming radios and accessing the installed microSD card in mass storage mode.

  • Serial communication interface with Bluetooth® for wireless connection
  • Radio programming through a microSD card

Voice Announcement
The new IDAS radios can notify channel number, zone and channel type with voice announcement. This function is convenient for making radio adjustments without having to look at the radio. Voice announcements can be replaced with customized messages

  • Messages of up to 100 characters
  • Status message
  • Low battery beep
  • Normal, priority and voting scan
  • Internal clock

Vibration Alert
When a call is received, the IDAS radio vibrates powerfully enough for the incoming call to be felt through heavy clothing.

IP68 Waterproof and Dust-tight
The IDAS handheld radio is built durable to endure 1 m depth water for 1 hour and dust-tight protection. The radio also passes MIL-STD-810 specifications.

Allgemeine Features
Frequenzbereiche: 136–174 MHz, 380–470 MHz │ 1024 Speicherkanale in 128 Zonen │ 32 Speicherkanäle (nur IC-F3400D-Serie) │ Stabile Konstruktion erfüllt MIL-Standards │ 14-poliger Zubehöranschluss mit BTL-Verstärkerausgang │ VOX-Funktion (Voice Operated transmission) │ Interne Uhr │ Schneller Suchlauf für den Voting- und Multi-Site-Betrieb │ Taktische Gruppenfunktion für die zeitweise Aufspaltung von Nutzergruppen │ Normaler, Prioritäts- und Voting-Suchlauf

IDAS™-Features
IDAS conventional and multi-site conventional │ Type-D Single-Site Trunking and Multi-Site Trunking* │ 6.25 kHz and 12.5 kHz channel spacing │ Analog / digital conventional mixed mode operation │ status message │ text message  │ call alert │ Radio Check │ Radio Stun/Revive/Kill │ Remote-Monitor
* License upgrade for Type-D multi-site trunking possible

Analog-FM-Features
2-tone, 5-tone signaling, CTCSS and DTCS built-in │ DTMF auto dial and DTMF decoder │ MDC-1200 compatible │ BIIS-1200 compliant │ Basic LTR ™ trunking │ Audio Compander │ Built-in voice inverter

Supplied Accessories

Battery pack BP-283 | Belt Clip MB-133 | An antenna that meets the requirements and a charger must be purchased separately
