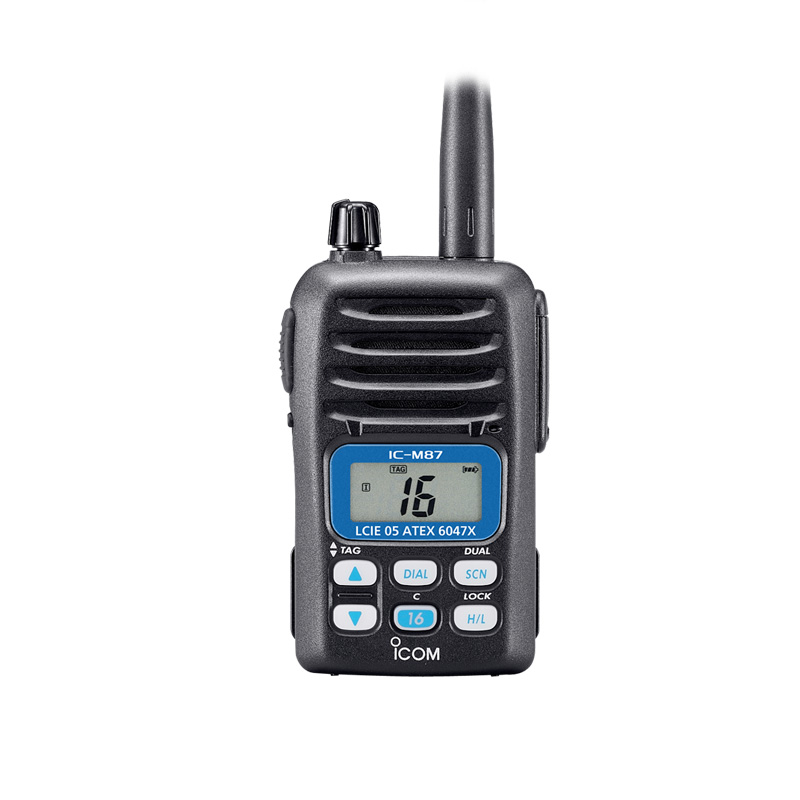

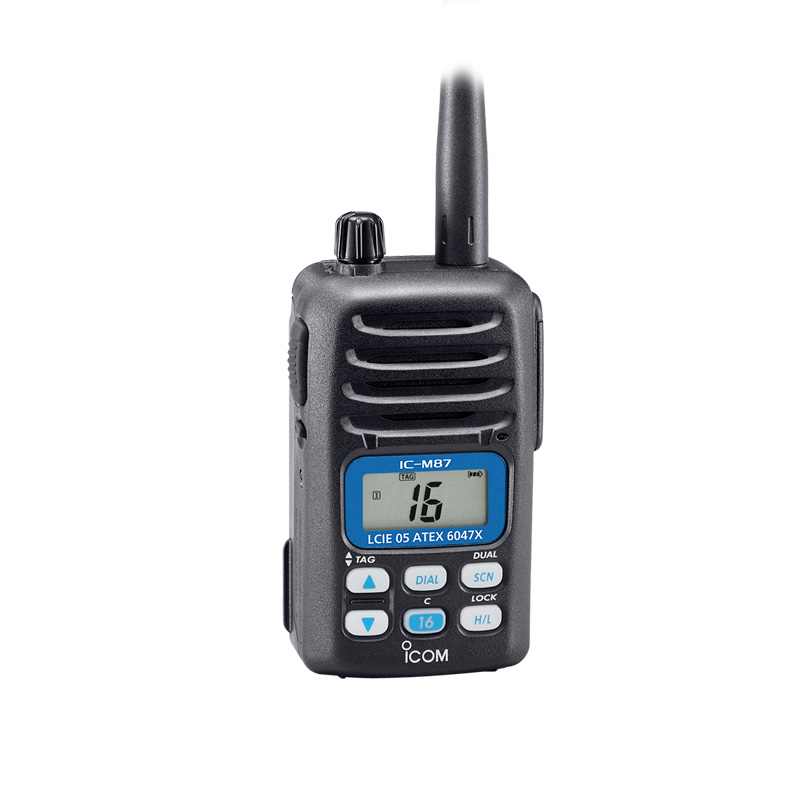

VHF Marine Transceiver

ATEX Intrinsically Safe Type Approval


ATEX Intrinsically Safe Type Approval
The IC-M87 ATEX and designated options are certified to the ATEX Directive. It is suitable for use in hazardous areas where
flammable gas- ses or liquids are used such as petroleum tankers and bulk cargo carrier. The approved rating is II2G Ex ib IIA T3 Gb. Special conditions for use: Must be used with BP-227AX When the transceiver is used in hazardous areas, either the jack cover or HM-138 must be attached to the connector. Ambient operating temperature: –20°C to +55°C EN 60079-0: 2012 + A11: 2013, EN 60079-11: 2012

IPX7, Waterproof Construction
The IC-M87 ATEX is built tough to withstand hazardous and unhos- pitable environments at sea and on land. Even if the IC-M87 ATEX is dropped into water, the IPX7 waterproof construction will protect it from harm (1 m depth for 30 minutes). The compact and durable body also has been tested to US. military specifications (MIL-STD 810).

Li-ion Battery for Extra Long Battery Life
With the standard 1950 mAh (typ.) rechargeable Li-ion battery pack, BP-227AX, the IC-M87 ATEX allows you up to 19 hours of operating time.* * Typical operation; Tx: Rx: Stand-by duty ratio = 5: 5: 90

22 Programmable Channels for PMR Use
The IC-M87 ATEX has 22 programmable channels for PMR use (146– 174 MHz). Wide/narrow channel spacing is programmable for each chan- nel, and CTCSS and DTCS signaling is built-in.
*Appropriate license will be required.

Built-in Voice Scrambler
The IC-M87 ATEX has a built-in 32 code voice scrambler. The voice scramble is compatible with the UT-112 which is adopted to some Icom marine radios.

Optional Waterproof Speaker-Microphone, HM-138
An optional waterproof speaker-microphone, HM-138, provides reli- able operation, allowing you to wear the IC-M87 ATEX on your
belt for added portable convenience.

Other features
Up / down buttons for channel selection | Permanent access to channel 16 and call channel | Easily add / delete TAGs for the search | Automatic scan function | Battery indicator in four stages | Keypad lock and monitor function | Programmable beeps | 2-stage power saving function | Self-test function | Inland Waterway Radio (ATIS) possible *
* The channel group switching from INT to ATIS requires a corresponding activation by the specialist dealer. An assigned ATIS code is to be programmed. Please observe the applicable guidelines for the use of hand-held radios in the area of inland waterway radio.

Supplied accessories

Battery Pack BP-227AX | Desktop Charger BC-152N | AC adapter BC-147SE (230 V) | Belt clip MB-86 | Antenna FA-S59V | hand strap

Optional accessories
BP-227AX – 7.4V Li-Ion Battery Pack, 1900 mAh (typical) 1,850 mAh (min.)
AD-100 – Charging Adapter for BC-119N and BC-121N
BC-119N – Fast Charger (including BC-145SE) to charge the battery in about 3 hours (AD-100 is required)
BC-121N – Multi-loader for fast charging of up to 6 batteries (BC-157S and 6x AD-100 required)
BC-145SE – power supply for BC-119N
BC-157S – power supply for BC-121N
HM-138 – Loudspeaker microphone, IPX7 waterproof construction
MB-86 – rotary belt clip
MB-98 – Belt Clip, Clamp Type

Further information can be found in the download area
