VHF/UHF DUAL BAND DIGITAL TRANSCEIVER
Flagship Mobile Transceiver Featuring a Large Color Display, Delivering Outstanding Visibility, Intuitive Operation, and Multifunction Performance.
ID-5200E
€867,51 RRP incl. 19 % VAT
Description
Clear to See, Simple to Use, Dual‑band Mobile Transceiver that Expands Your Operating Possibilities with a Full Range of Advanced Features.
The ID-5200E is a new digital transceiver covering the VHF/UHF bands. It features a large touchscreen display and, combined with a waterfall display that shows band conditions at a glance, delivers outstanding visibility and intuitive operation.
The ID‑5200E offers a comprehensive set of D‑STAR features, including Terminal Mode, Access Point Mode, and DV repeater monitoring. A future firmware update will also add support for APRS. The ID‑5200E is additionally equipped with Wi‑Fi® and Bluetooth® connectivity. By connecting to the Internet via Wi‑Fi, Terminal Mode and Access Point Mode can be operated even more conveniently. It can also connect wirelessly to smartphones, allowing comfortable use of applications and more. In addition, it supports full dual-watch reception including DV/DV, enabling efficient operation.
A Large Touchscreen Color display with Excellent High Visibility
The ID-5200E features the same large 4.3-inch color display used in the IC-705 and IC-7300MK2. The touchscreen interface allows quick and intuitive access to settings such as frequency, mode, and other key functions. Furthermore, it is equipped with an automatic dimming function that adjusts the LCD backlight to the optimal brightness according to ambient light levels, as well as a key backlight that makes key operation easier at night or in dark environments. Visibility is greatly improved, allowing you to check a wide range of information more quickly.
*The in-vehicle installation example uses the Mount Base MBF-1 〈optional〉 and Controller Bracket MBA-20 〈optional〉

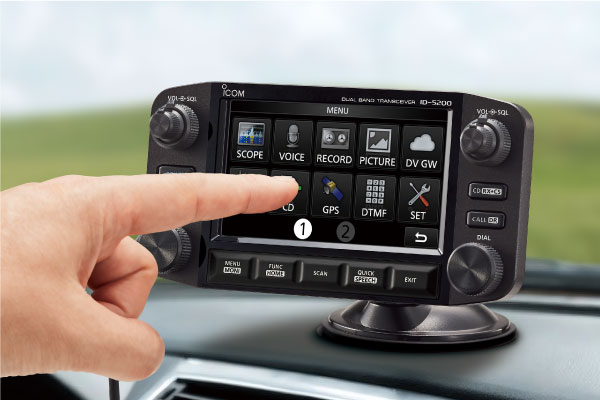

Touch operation image※
Independent Dual-band Dials for Superior Operability
When the main dial is pushed, the Touch Assist screen appears. Frequently used items such as Band, Mode, and TS (Tuning Step) are displayed in large format, enabling more reliable selection and configuration.

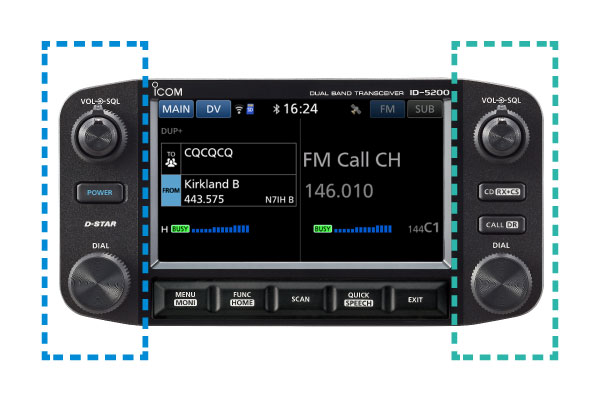

Independent dual-band dials
Touch Assist feature that supports in-vehicle operations
When the main dial is pushed, the Touch Assist screen appears. Frequently used items such as Band, Mode, and TS (Tuning Step) are displayed in large format, enabling more reliable selection and configuration.

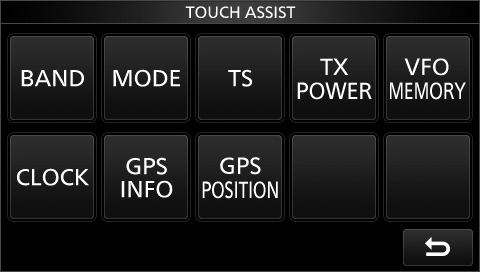

Touch assist image

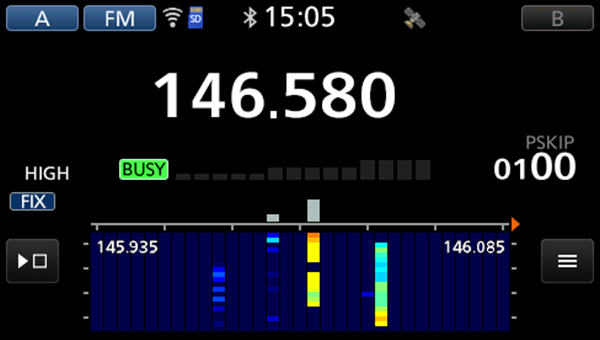

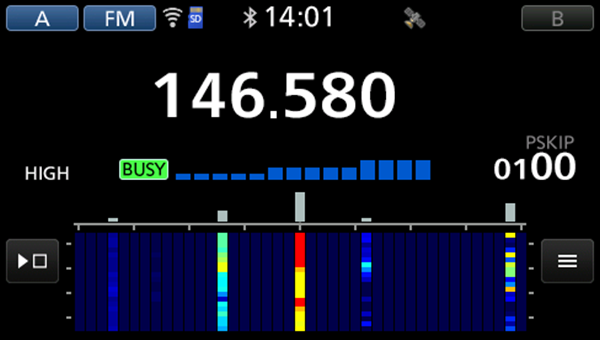

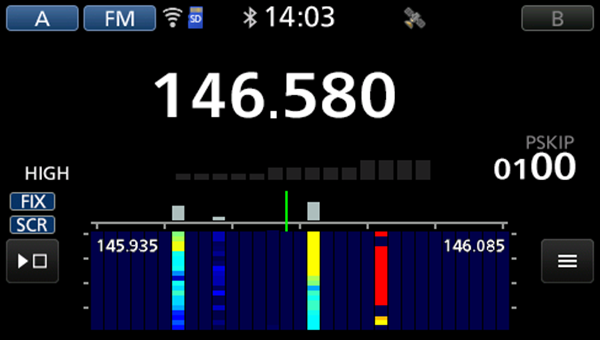

Waterfall Display for At-a-Glance Band Conditions
The ID-5200E is the first mobile transceiver to incorporate both a band scope and a waterfall display. The band scope provides detailed information on signal activity, band conditions, and available frequencies. The waterfall display further enhances visibility by allowing you to review received signal history over time and easily identify weak signals. Display modes include Center mode, FIX mode, and FIX Scroll mode, giving you flexible options to suit your operating style.
Center Mode
Displays received signals within a fixed range centered on the current receiving frequency.
FIX Mode
Displays received signals within a fixed range centered on the receiving frequency set in “FIX Mode Center Frequency.”
Scroll FIX Mode
Displays received signals within a fixed range centered on the receiving frequency set in “FIX Mode Center Frequency.
” If the reception marker moves beyond the display range, the view scrolls to follow it.
Enhanced D‑STAR Functionality, Including Terminal Mode and Access Point Mode

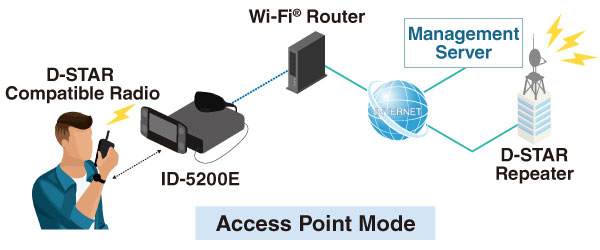

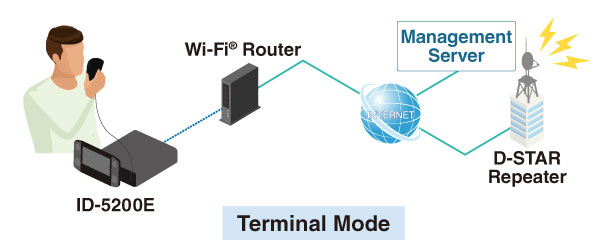

Terminal Mode and Access Point Mode
Even from locations where you cannot access a repeater, you can connect to the internet via Wi-Fi® to communicate over D-STAR. You can enjoy D-STAR without being affected by the availability or location of the nearest repeater. In addition, even in environments where a global IP address is not assigned, standby operation in Terminal Mode/Access Point Mode is possible*. These features enable easier and more flexible D-STAR operation.
*Reception of all calls is not guaranteed. In environments where a global IP address is assigned and port forwarding is available, please set UDP Hole Punch to OFF.
DV Repeater Monitor Function
The DV Repeater Monitor lets you check activity on the destination repeater during Area CQ via D-STAR. By accessing the repeater used to broadcast the area CQ via the Internet and actively monitoring the situation, you can determine when an ongoing communication has ended. Monitoring works with domestic and overseas repeaters, and reception from the nearest repeater always takes priority so you will never miss calls to your own station.

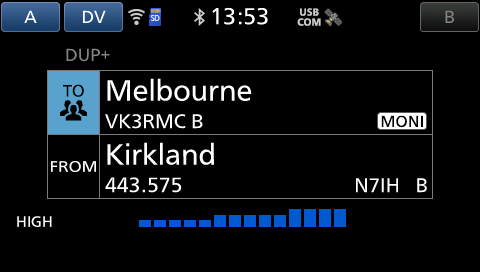

DV repeater monitor image

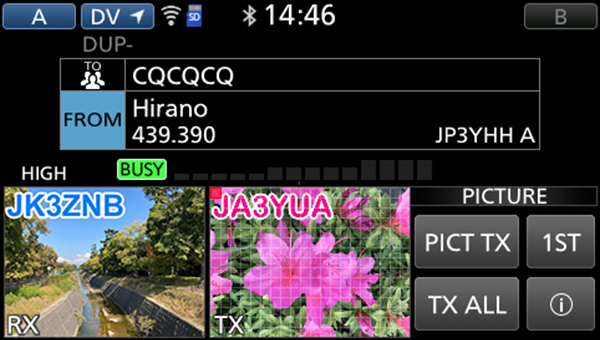

Image Transmission and Reception
The ID-5200E allows you to send, receive, and view stored images using only the main unit. Photos taken with a smartphone can be transferred to the ID-5200E via built-in Wi-Fi® or Bluetooth® connectivity.
DV repeater monitor image
Connectivity for Smartphone and PC with Wi-Fi®/Bluetooth®
The ID-5200E supports connectivity via Wi‑Fi® (compatible with 2.4GHz/5GHz bands) and Bluetooth® functions. Using the Wi‑Fi feature to access the Internet enables smoother operation in both Terminal Mode and Access Point Mode. It can also connect wirelessly to a smartphone, making it highly convenient when using control software, image‑trimming applications, and similar tools. Control software, image trimming utility software, and other applications can also be used by connecting to a smartphone via Wi-Fi® / Bluetooth® functions.

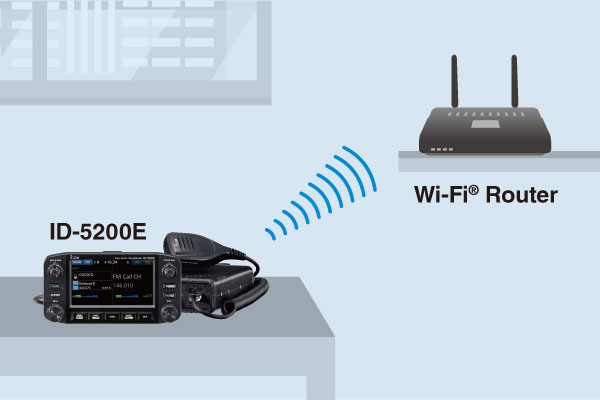

Wi-Fi® connection image
Supports APRS®* (Automatic Packet Reporting System)
The ID-5200E will support APRS®*, a communication protocol that utilizes packet radio to transmit and receive real-time information such as location data, messages, and weather reports. The built-in KISS mode TNC has been implemented since the first production run, enabling APRS operation from a PC.
*Planned for support in a future firmware update

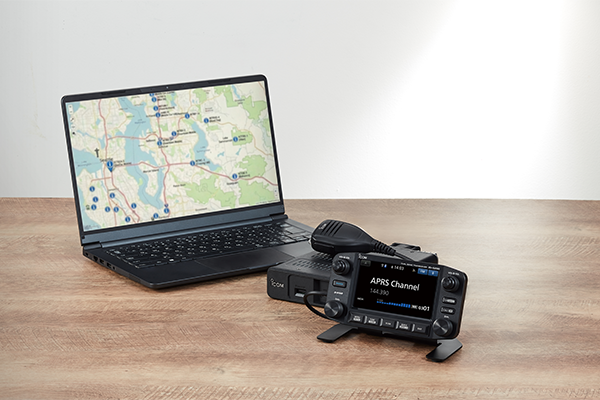

APRS® image
Dualwatch including DV/DV
The receiver section features independent and identical receiving circuits for both MAIN and SUB. It supports full dualwatch including not only FM/FM and FM/DV, but also DV/DV. It is possible to operate with FM/DV (Terminal Mode) and listen to audio from 2 frequencies/modes simultaneously. This enables operations such as receiving from 2 D-STAR repeaters simultaneously, or monitoring another repeater while engaged while in communication.

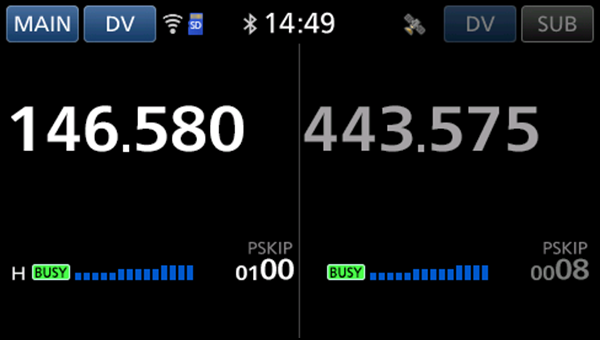

DV/DV mode image 1
DV/DV mode image 2

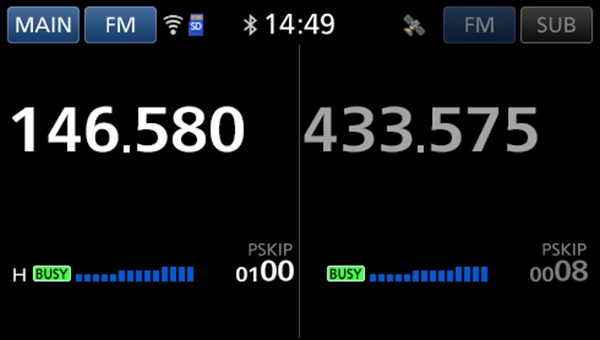

FM/FM mode image

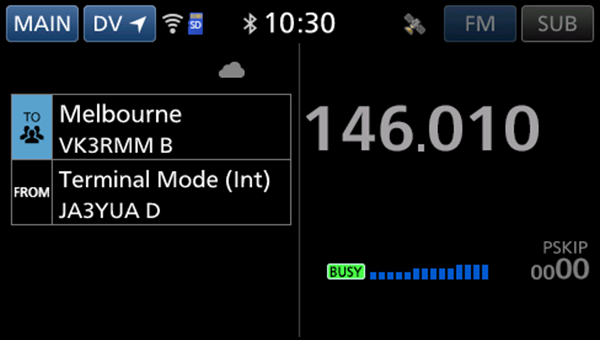

Dualwatch in Terminal mode image
Supports a wide range of reception, including VHF/UHF airband and FM radio
In addition to VHF, the radio supports Airband reception in the UHF range (225 ~ 400 MHz). Simultaneous dual-band reception of V/V, U/U, and V/U combinations is also available in the Airband. You can enjoy not only communication, but also a wide variety of reception.

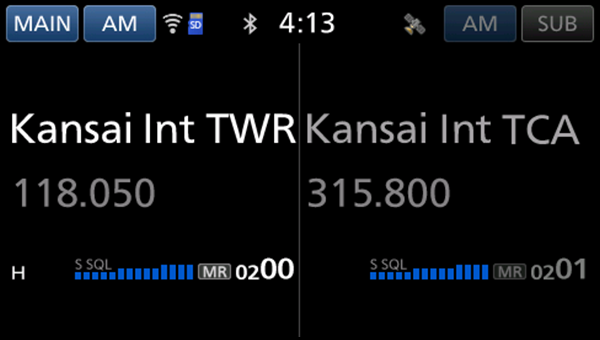

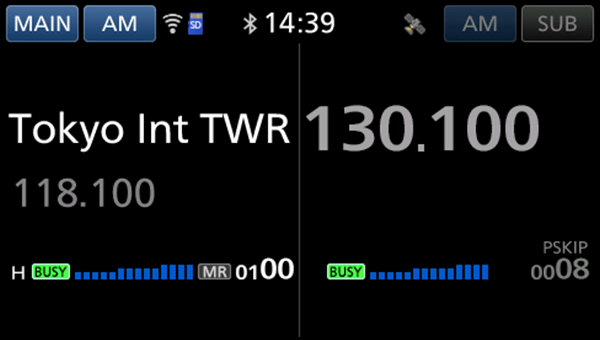

V/V airband mode image
V/U airband mode image
Built with an advanced high‑precision GPS (GNSS) receiver
Equipped with a GPS (GNSS) receiver compatible with “Michibiki,” enabling sub-meter high-precision positioning. It displays highly accurate own-station position information and transmits location data, delivering strong performance in APRS® and D-PRS. It also offers features such as automatic position response, GPS logging, and automatic listing of nearby repeaters.
*The positioning accuracy of latitude/longitude/altitude may vary depending on signal reception conditions.

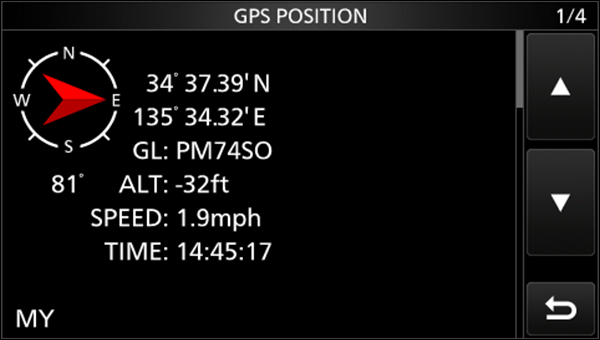

Own position information image

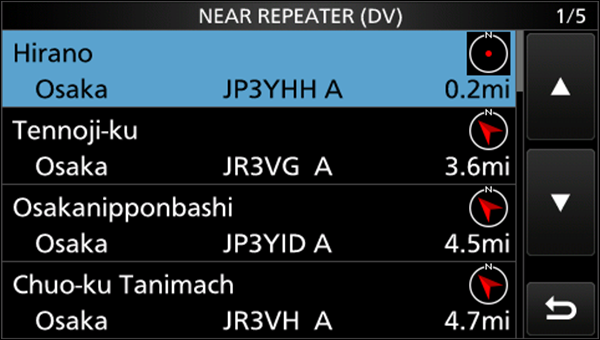

Nearest repeater information image
Flexible Mounting Options in the Vehicle

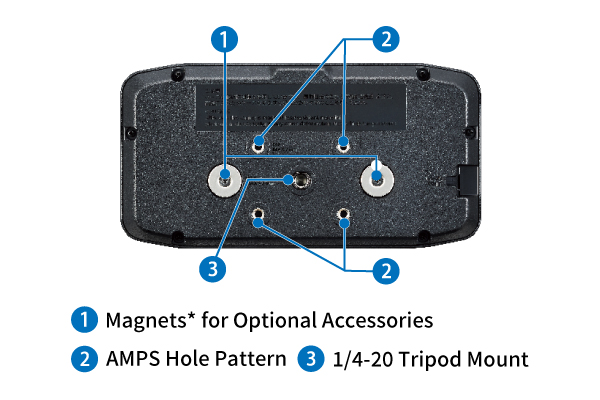

Using optional accessories such as the MBA-20 controller bracket and the MBF-1 mount base, the unit can be securely installed in a vehicle. A wide range of additional mounting options is also available, including the MBF‑11 bracket for docking the main unit and the MBA‑19 bracket for desktop placement. Furthermore, the device supports AMPS-pattern mounting holes and standard 1/4-inch camera tripod screws, allowing flexible installation methods to suit various in-vehicle environments.
MBA-19
MBF-11
Compatible with the Optional HM‑209 Noise‑cancelling Microphone (optional accessory)
Using DSP technology, the unit automatically reduces noise and wind interference, delivering natural and clear audio that is easy to hear.
Other Features
- USB Type-C™ connectivity is available for use with PCs and smartphones.
- Built‑in microSD card slot for storing transmission/reception logs and voice recordings.
- Convenient memory management functions, including direct CSV data import.
- Speech function for frequency, receive mode, and call sign announcements.

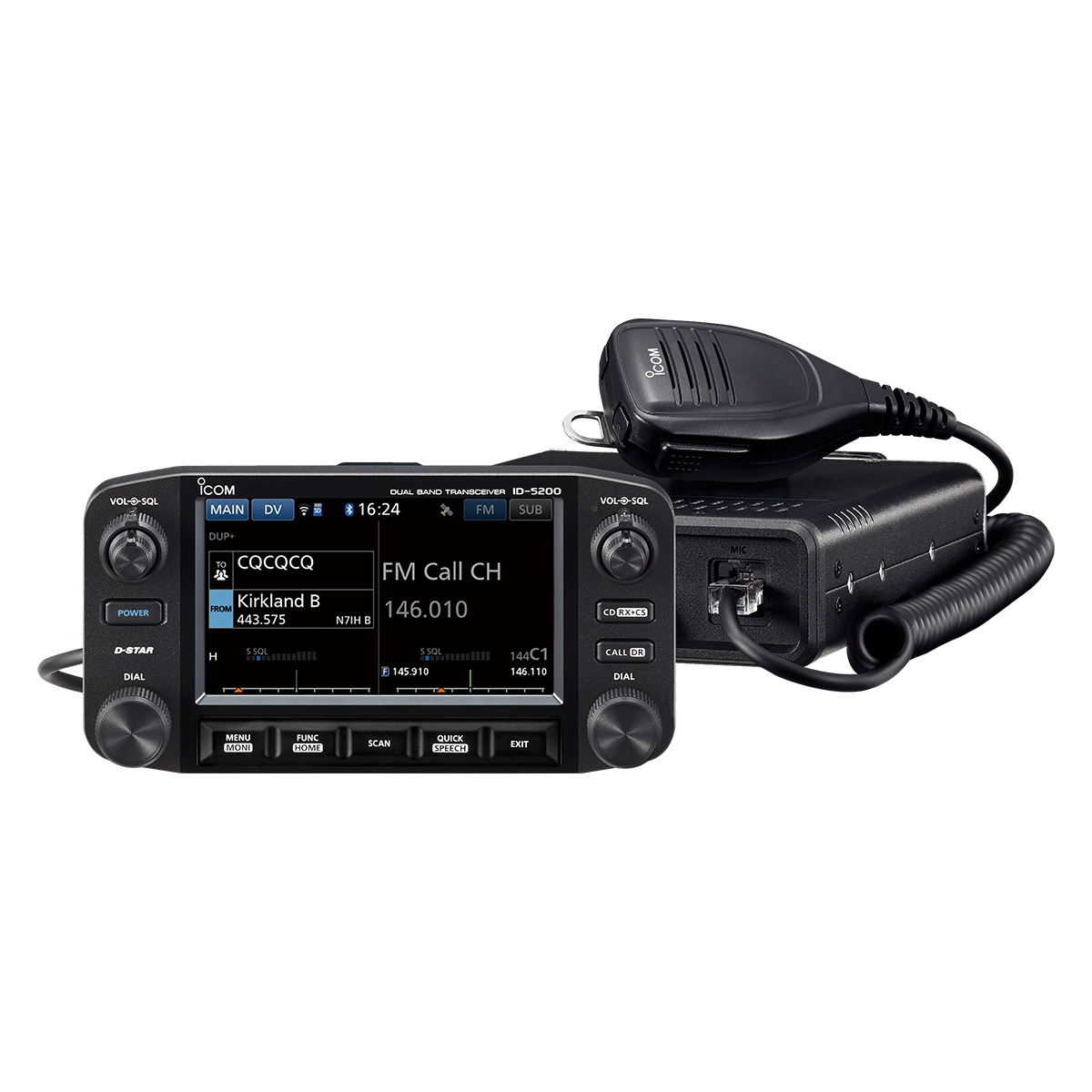

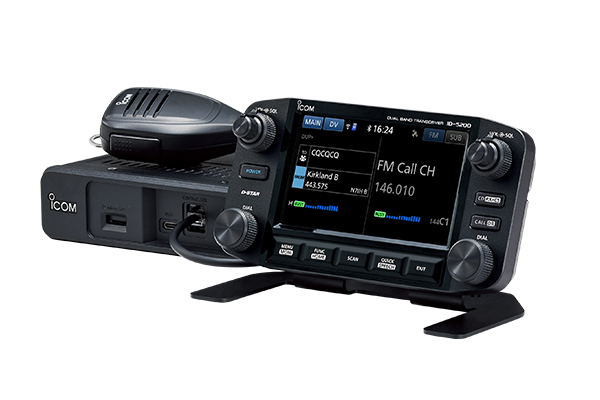

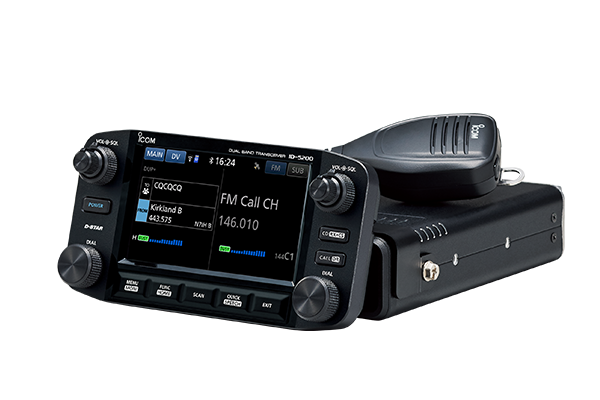

Front/Rear view of the main unit

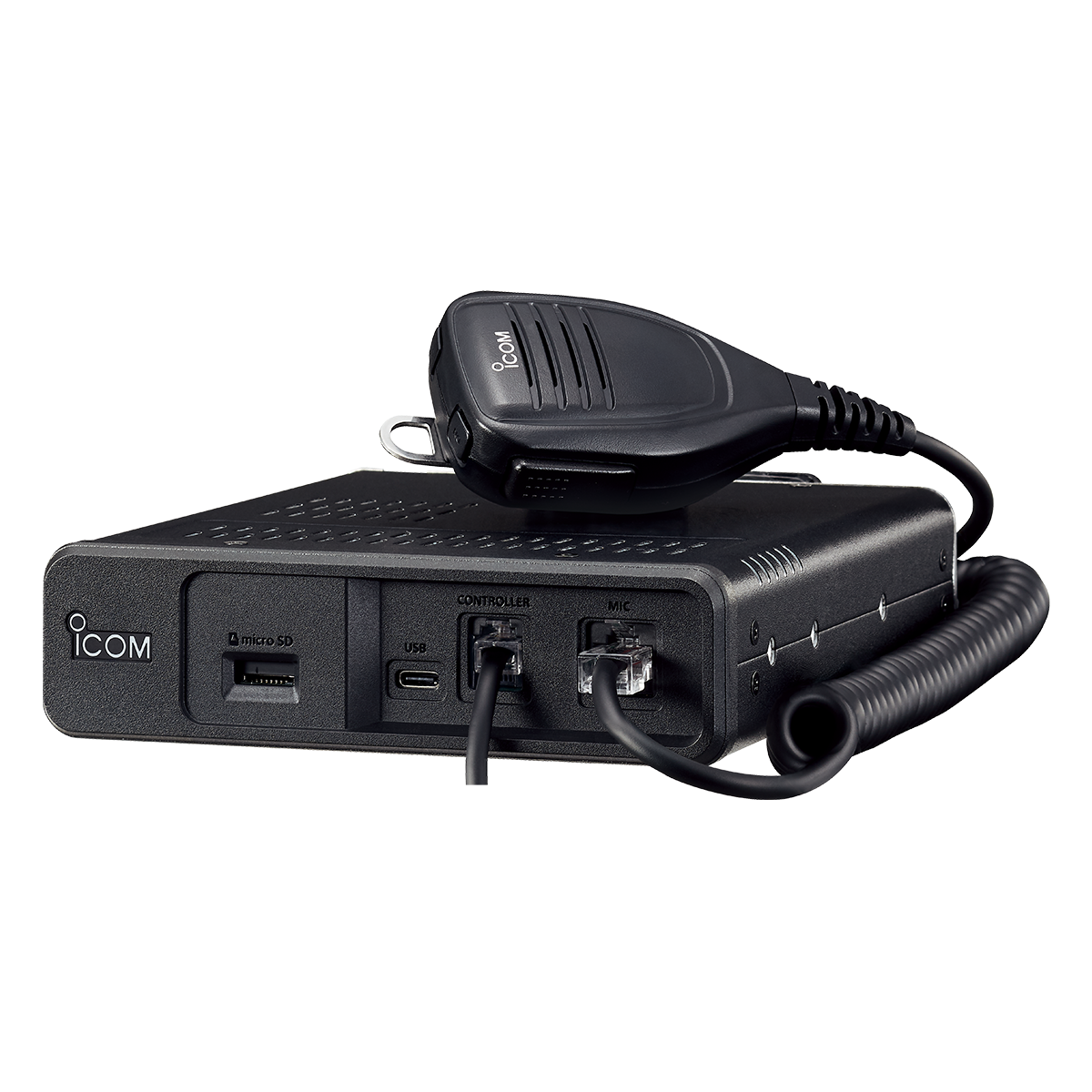

Front view of the main unit

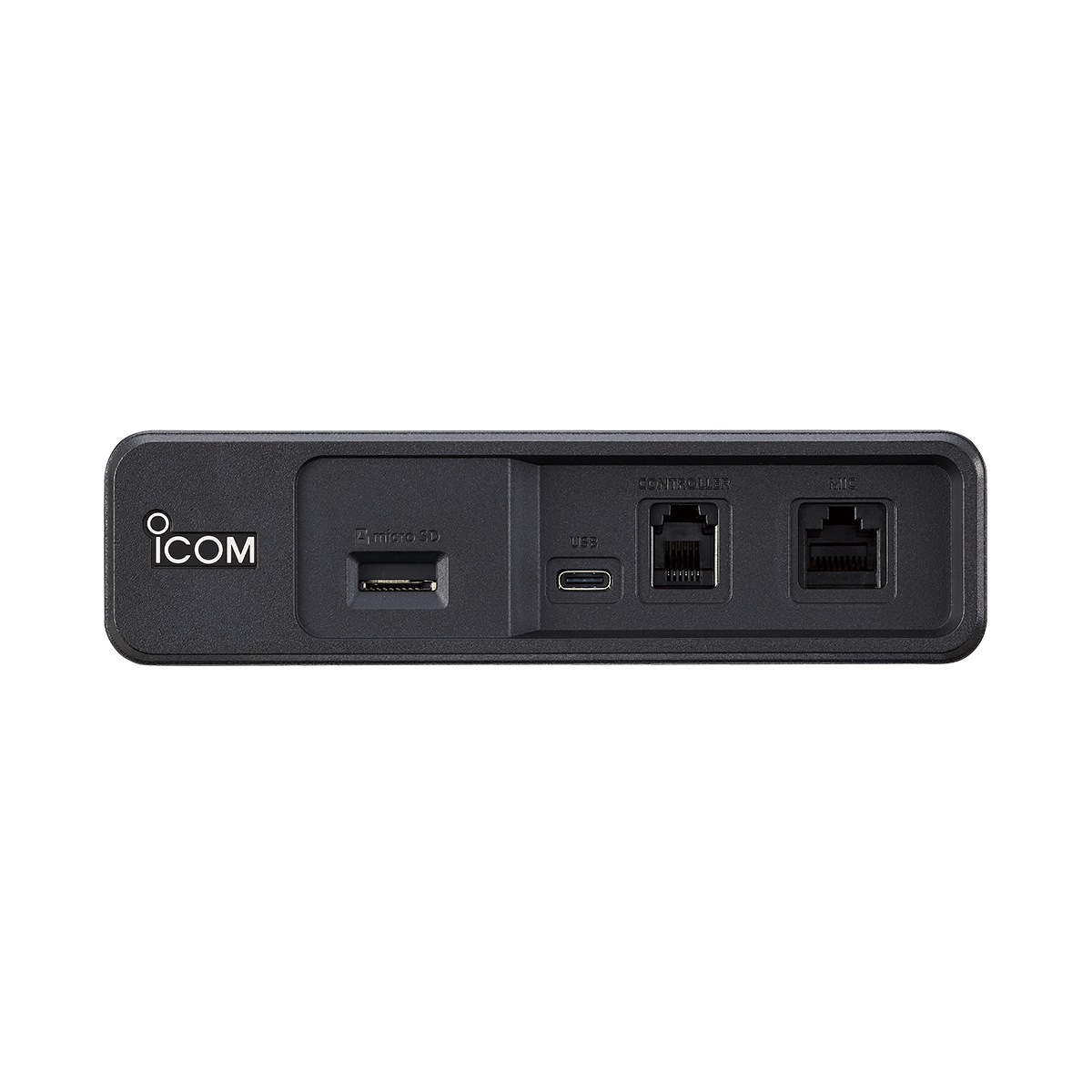

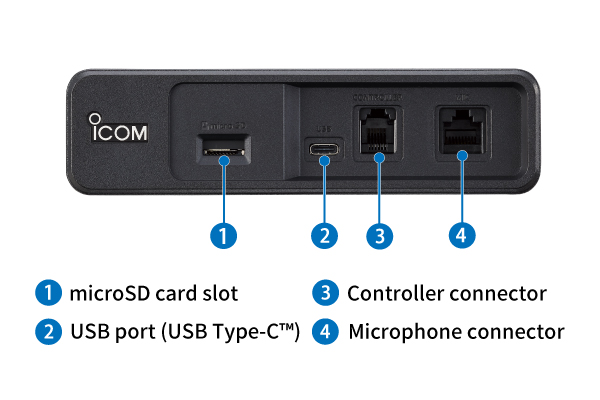

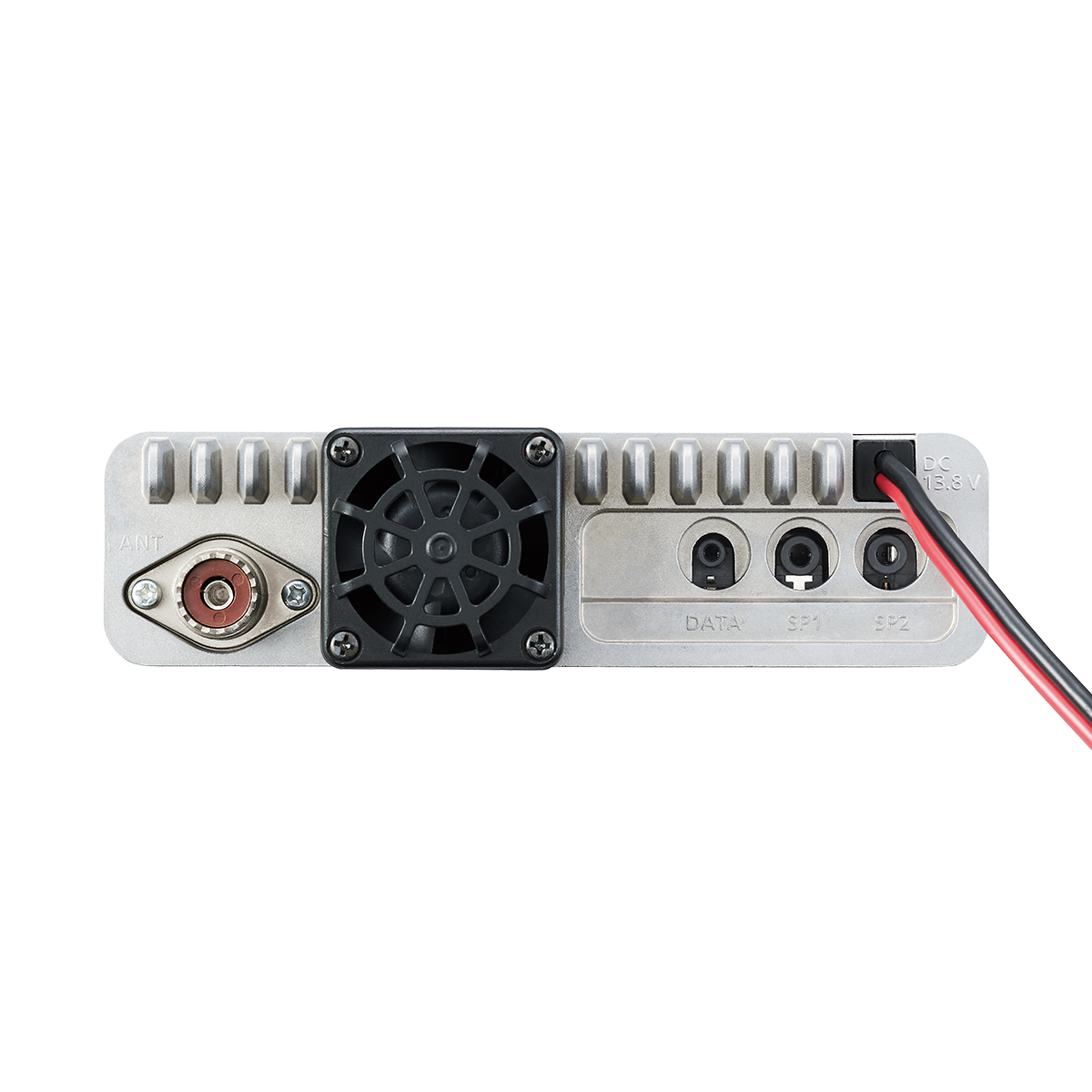

Rear view of the main unit

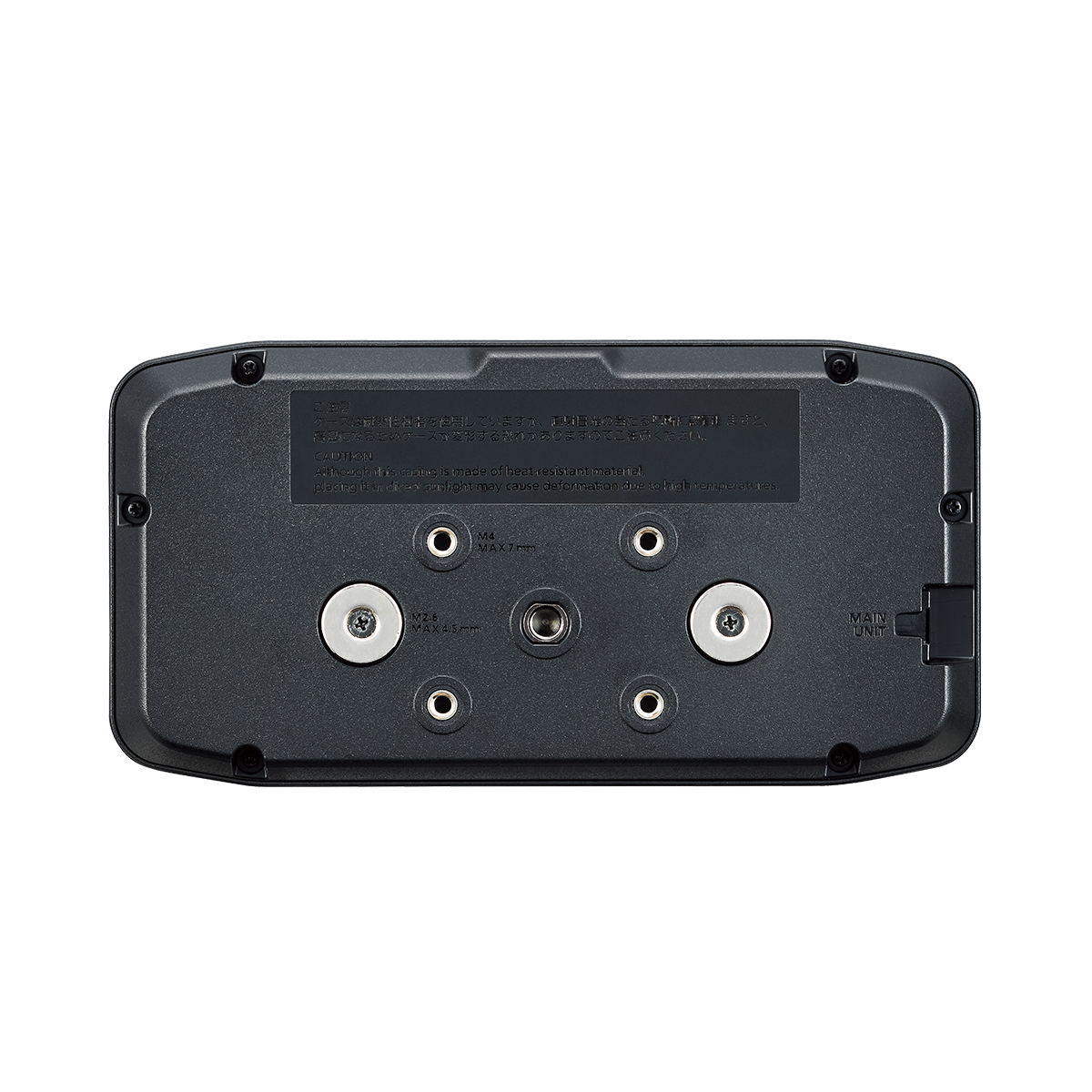

Rear view ot the controller
Further information can be found in the download area
