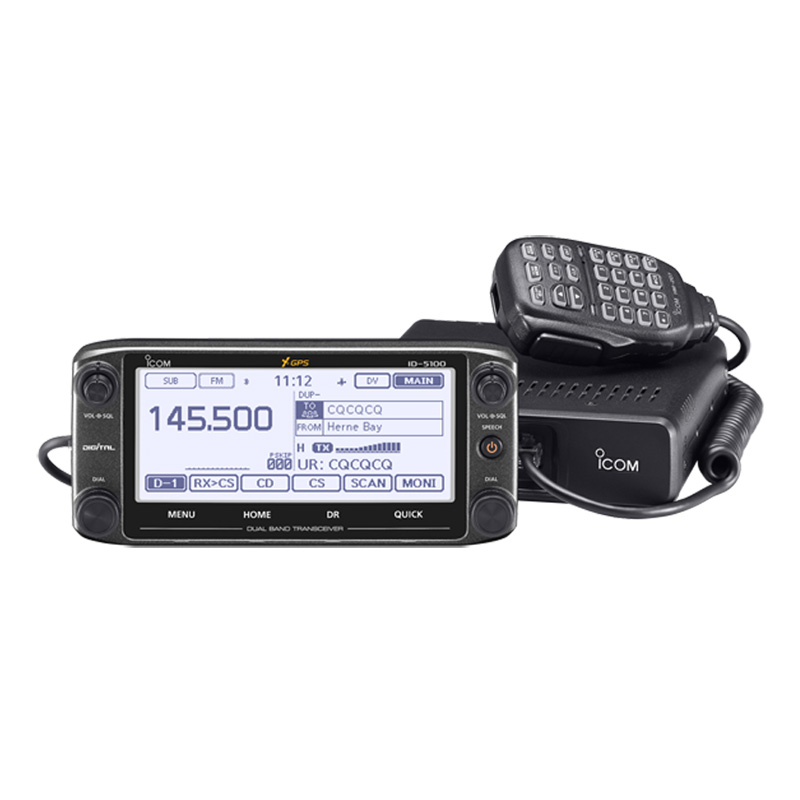

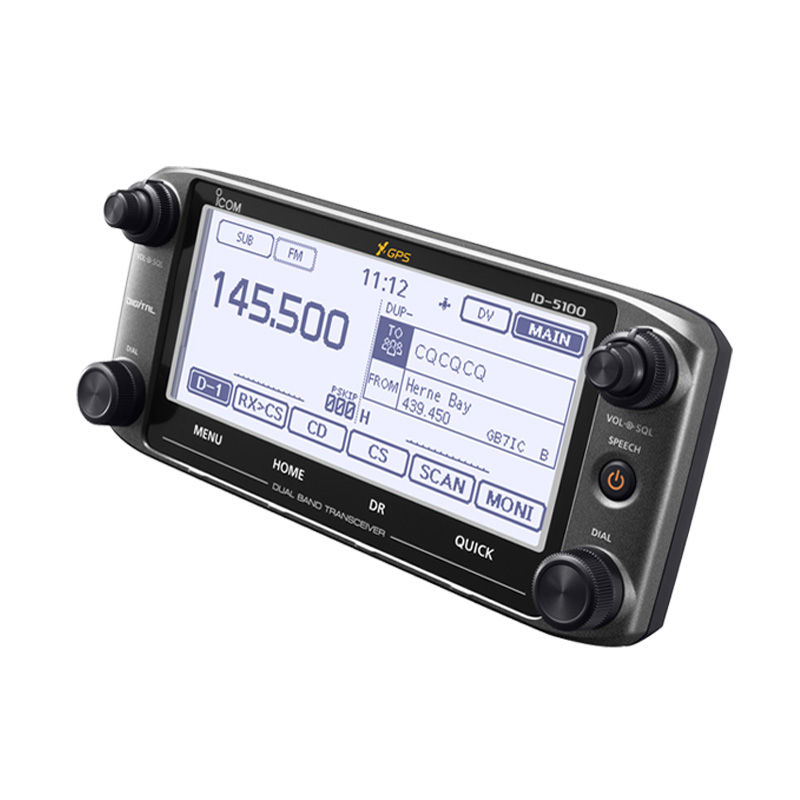

ID-5100E

666,20 UVP inkl. MwSt.

Out of stock

VHF/UHF-DUALBAND-DIGITAL-TRANSCEIVER

Innovation and mobility at a higher level

Touch Screen Operation, DV/DV-Dualwatch, built-in GPS receiver, DV/FM-Repeater-lists, D-STAR-DV-Modus, Bluetooth®, Android™,…

find distributors

Out of stock

Description

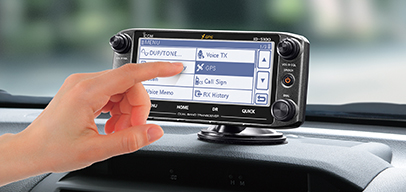

Intuitive Touch Screen Operation
The intuitive touch screen interface provides quick and smooth operation. The large 5.5 inch display (320×128 pixels) responds naturally to the touch allowing you to change settings, enter frequencies, edit memory channels with ease.

amateurfunk_mobilfunkgeraet_ID_5100E_installation

DV/DV Dualwatch
The ID-5100E can receive both FM/FM and FM/DV mode signals simultaneously. Two DV mode signals can be monitored for receive on either channel. You can check other repeaters or other channel activities while waiting for the main repeater.
* Main band audio has priority, if two DV signals come in at the same time.

amateurfunk_mobilfunkgeraet_ID-4100E_DR_function
DV/DV dualwatch (DR function)
example
amateurfunk_mobilfunkgeraet_ID_5100E_ualwatch_03
FM/DV dualwatch (DR function)
example
amateurfunk_mobilfunkgeraet_ID_5100E_dual_05
FM/DV dualwatch example

Integrated GPS Receiver
The ID-5100E has an integrated GPS receiver in the controller and shows own position, course, speed and altitude on the display. The GPS position information can be used for exchanging position reports, tracing the GPS log and searching for nearby repeater sites.

amateurfunk_mobilfunkgeraet_ID_5100E_GPS_06
Received position information example

DV/FM Repeater List Function
The DV/FM repeater list function assists you in accessing nearby repeaters, even when you are visiting an area for the first time. The function searches for a nearby repeater using the repeater memories and GPS position information.
*To use the automatic repeater list function, the position data of the repeater is required. The ID-5100E will be shipped with a limited number of repeater memories preprogramme

Dplus Reflector Linking
Dplus reflector link commands are added to the DR function to allow easy reflector operation. Use Reflector, link/unlink to Reflector, echo test and repeater information commands are selectable.

"
Reflector commands example

SD Card Slot for Voice and Data Storage
When used with an SD card, the SD card can store various contents including voice memory, DV auto reply message, TX voice message, QSO log, RX history log and GPS log data. Memory channels, repeater memories and other personal settings can be saved to the SD card and can be loaded to the transceive

VS-3 Bluetooth® Headset
The optional Bluetooth® headset, VS-3 provides hands-free communication and can remotely control the ID-5100E with three programmable buttons.
*Optional UT-133/A Bluetooth® unit must be installed in the ID-5100E.

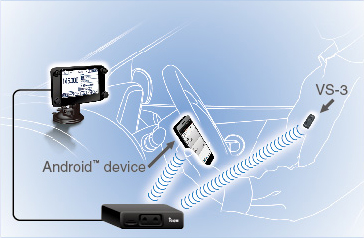

amateurfunk_mobilfunkgeraet_ID_5100E_bluetooth_08-1
Bluetooth® application image

amateurfunk_mobilfunkgeraet_ID_5100E_Headset_08-2                    amateurfunk_mobilfunkgeraet_ID_5100E_bluetooth_unit_08-3

Bluetooth® headset, VS-3 (option)                Bluetooth® unit, UT-133/A (option)



RS-MS1A Android™ Application
(Free download application from Google Play™)

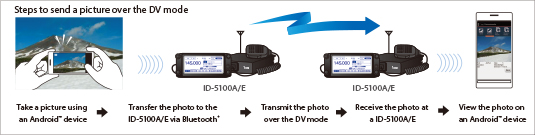

The RS-MS1A allows you wirelessly connect the ID-5100E and remotely set DR functions, link with a map application and send/receive messages over the DV mode. In addition, pictures taken by the Android™ device can be transmitted in the DV Fast Data mode or DV mode.

amateurfunk_mobilfunkgeraet_ID-4100E_DR_function
DR function setting example
amateurfunk_mobilfunkgeraet_ID_5100E_GoogleMaps_09-2
©2014 Google – Map data
©2014 Google
Repeater map example



DV Fast Data Mode*
By using data in place of voice frames, the ID-5100E can transfer data 3.5 times faster (3480 bps) than in the conventional DV mode (with voice).

* The DV Fast Data mode is not compatible with the DV mode low-speed data communication.

amateurfunk_mobilfunkgeraet_ID_5100E_steps_picture

Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-209 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.

Other Features

  • Enhanced D-PRS functions with object, position, items and weather formats
  • Convenient memory contents management using CSV format
  • Speech function announces operating frequency, mode and received callsign (DV mode)
  • Independent main dial, volume and SQL knobs for A/B bands
  • AM airband dualwatch
  • CS-5100, programming software supplied
  • 50W output power on both VHF and UHF bands
  • 1500 (50 groups) Repeater list entries
  • 300 call sign memories
  • 300 GPS memories
  • Split tone functions in the analog mode

Supplied accessories (* May differ, depending on version)

  • Hand microphone, HM-207
  • DC power cable, OPC-1132
  • Controller cable, OPC-837 (3.5 m; 11.4 ft)
  • Microphone hanger
  • CD (CS-5100 and instruction handbook PDF)
  • Spare fuse

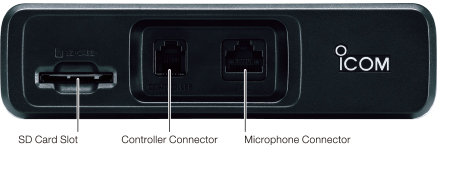

Main unit panel view

(Front panel)
amateurfunk_mobilfunkgeraet_ID_5100E_frontpanel

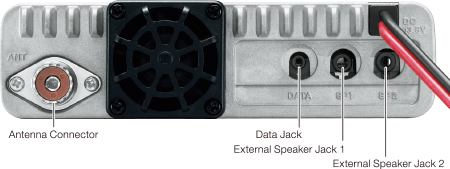

(Rear panel)
amateurfunk_mobilfunkgeraet_ID_5100E_rearpanel

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Icom Inc. is under license.
