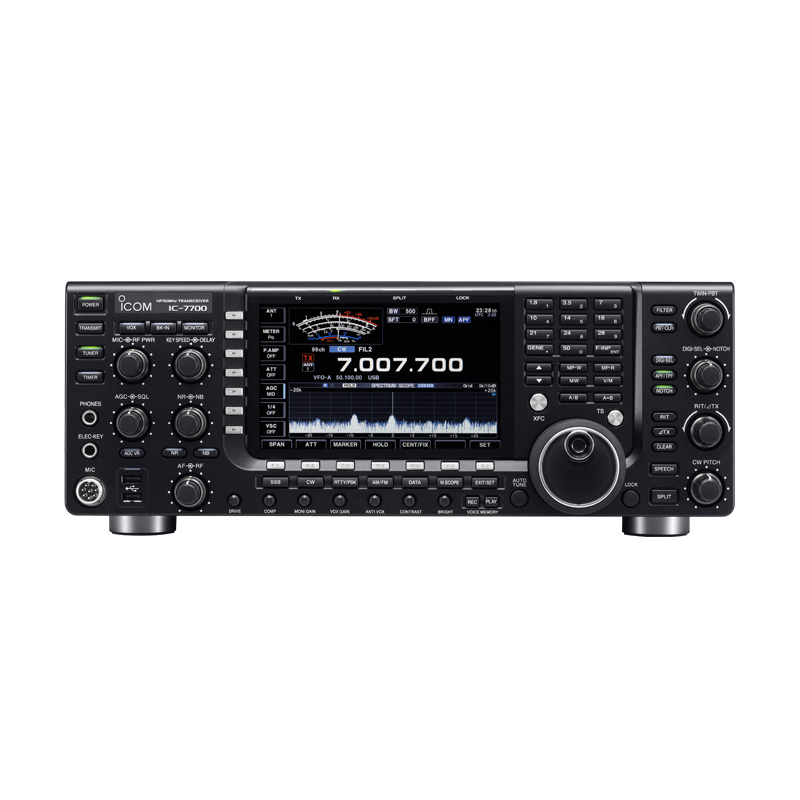

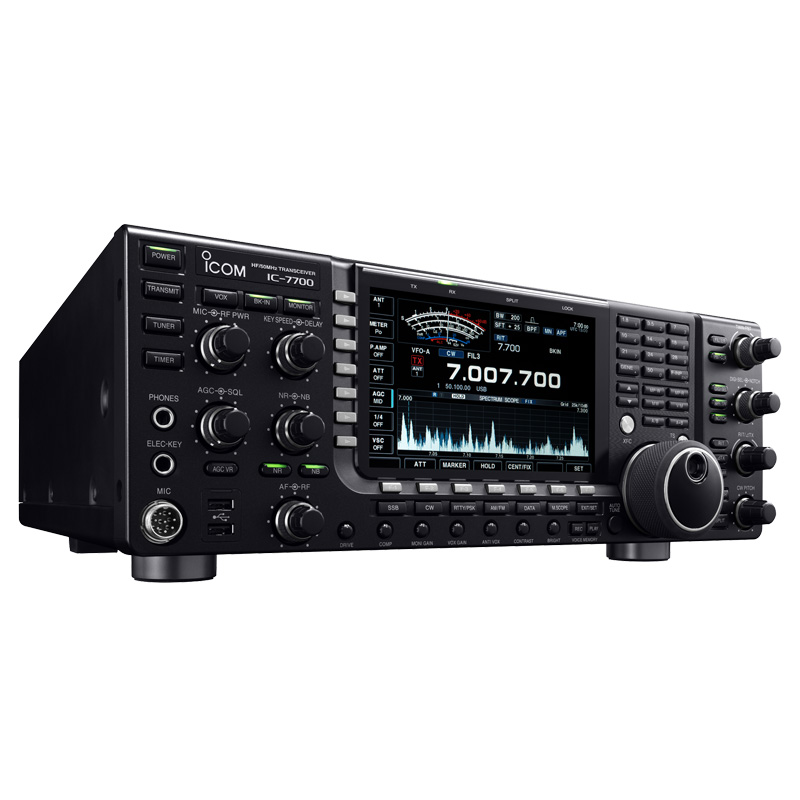

IC-7700

IC-7700

6.307,00 UVP inkl. MwSt.

Out of stock

HF-/50-MHz-Transceiver





find distributors

Out of stock

Category:

Description

110dB dynamic range and
+40dBm 3rd order Intercept Point (IP3)
Better than +110dBm 2nd order intercept point (IP2)
Double conversion superheterodyne system
High specification inband IMD
Inband IMD characteristics
Band pass filter
DIGI-SEL (Digital pre-selector)
Pre-amplifiers
1st mixer
Three Hi-Spec 1st IF filters (Roofing Filter)*1
2nd-stage image rejection mixer
50MHz band preamplifier and mixer
Two 32-bit floating point units
Two AGC Loops
High stability OCXO unit
7-inch wide color TFT LCD
USB ports on the front panel
RTTY /PSK31 operation without PC connection
4 antenna connectors
Real time spectrum scope
Digital twin PBT
Digital IF filter
Manual notch filter and auto notch filter
Durchlasskurven des manuellen Notch-Filters
Variable noise blanker
Noise reduction
Digital voice recorder
RX audio HPF/LPF setting
S/P DIF interface
SSB data mode
Firmware upgrade for maintaining the best performance
200W output power at full duty cycle, full power operation
Microphone equalizer and adjustable transmit bandwidth
High speed automatic antenna tuner covering HF to 50MHz band
Memory keyer

Other features

[Antenna line]
BNC type RX IN/OUT connectors for receiver antenna or external attenuator
[Receiver]
General coverage receiver covers from 30kHz to 60MHz
(* Some frequency bands are not guaranteed, depending on version)
4-step attenuator (6/12/18dB and OFF)
Twin peak audio filter for RTTY operation
[Transmitter]
Low distortion RF speech compressor
Tx monitor
50 CTCSS tone encoder and decoder
All mode power control
VOX capability (Voice operated transmission)
[CW]
Multi-function electronic keyer with adjustable keying speed, dot-dash ratio and paddle polarity and bug key function
DSP controlled CW keying waveform shaping
Frequency lock function for split operation
The normal (default) CW carrier point is selectable from USB and LSB
APF (audio peak filter) function with soft/sharp filter shape
Double key jack system
Full break-in function
CW pitch control from 300 to 900Hz
CW/AM auto tuning function
[Operation]
Set mode function for flexible and speedy setting
Memory pad stores up to 10 (or 5) operating frequencies
Quick split function enables split operation with a single action
SSB/CW synchronous tuning/li>
Single knob control from squelch volume to RF gain
RIT and ⊿Tx variable up to ±9.999kHz
Quick RIT/⊿TX clear function
UTC/Local Clock and timer function
1Hz pitch tuning and 1Hz indication
101 memory channels with 10-character comment
Built-in voice synthesizer announces operating frequency, mode and receiving signal strength
Programmed scan, memory scan, select memory scan, VSC scan and ⊿F scan
Auto tuning step function
Band edge beep
Main dial tension control and dial lock
CI-V interface capability and RS-232C connector for PC connection
BNC type Transverter connector
Triple band stacking register
FFT scope wave averaging function
Screen saver function

recommended retail price including vat € 6.307,00

IC-7700 delivery:

DC power cable
spare fuses
plug

Further information can be found in the download area
