IC-U20SR

IC-U20SR

New
PMR446 TRANSCEIVER

PMR446 Licence Free Transceiver in the Palm of Your Hand

Description

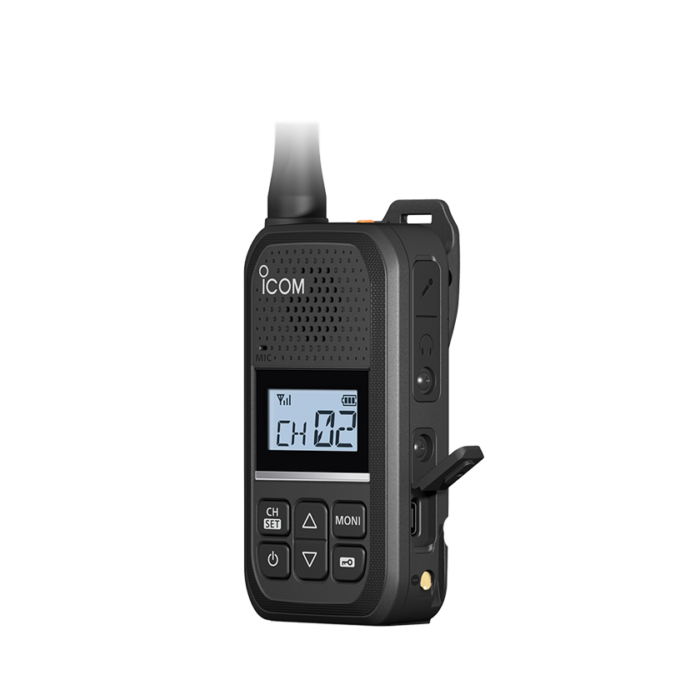

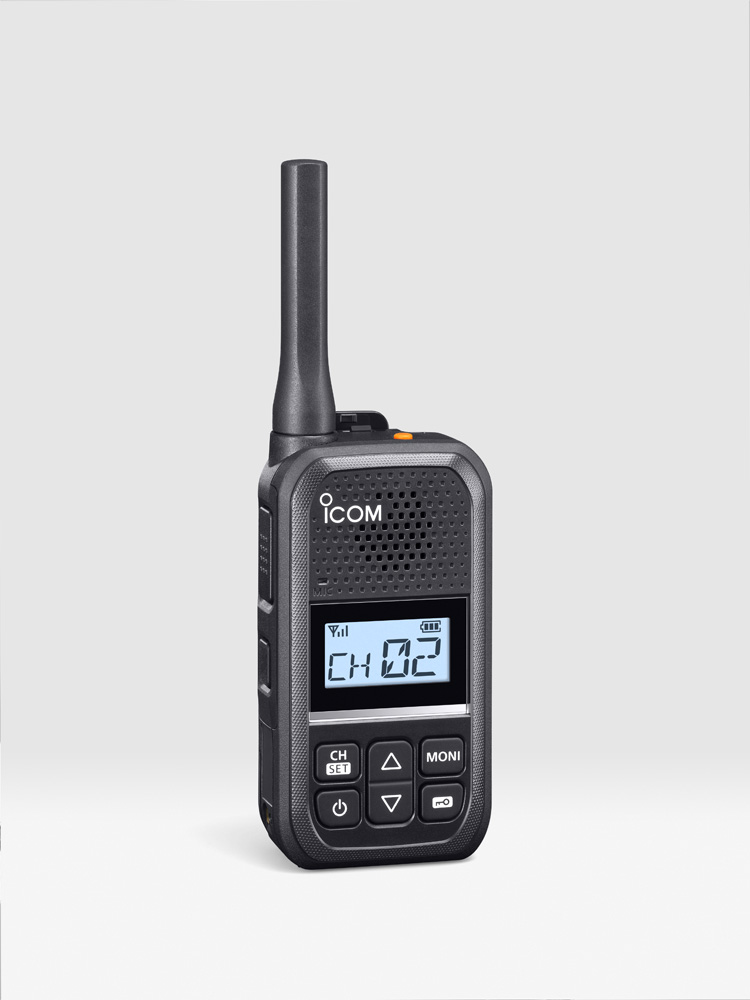

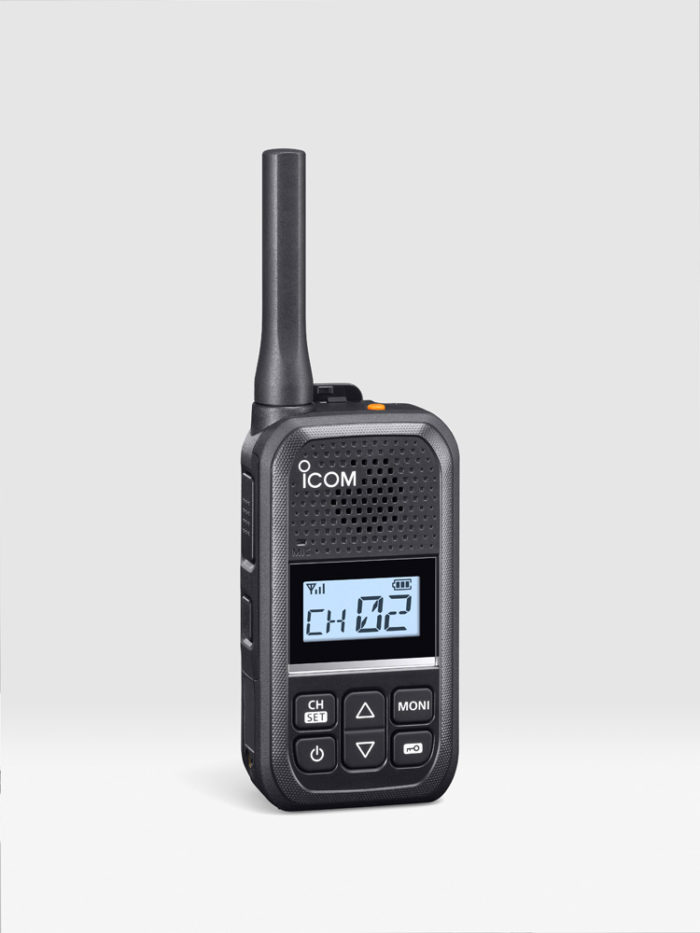

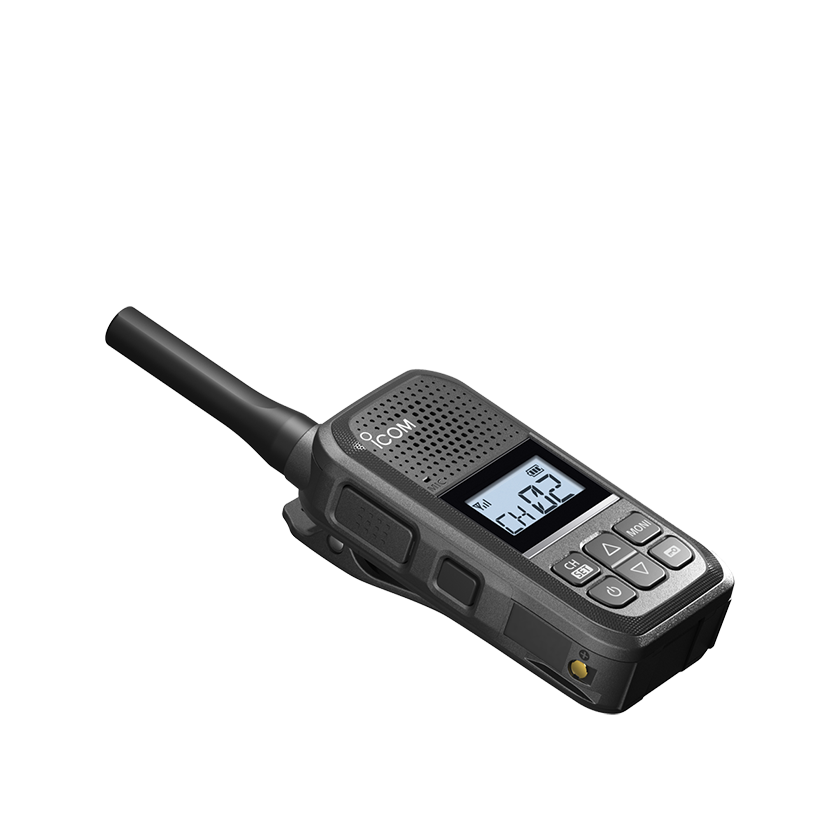

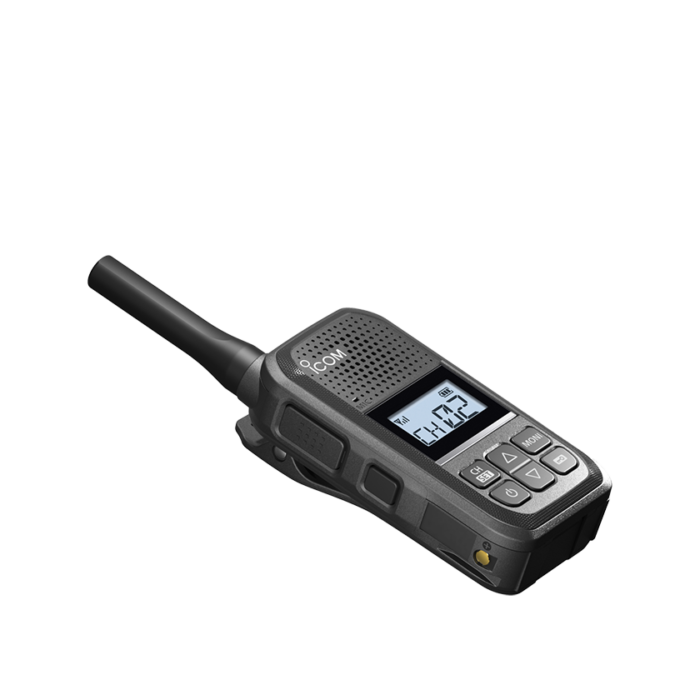

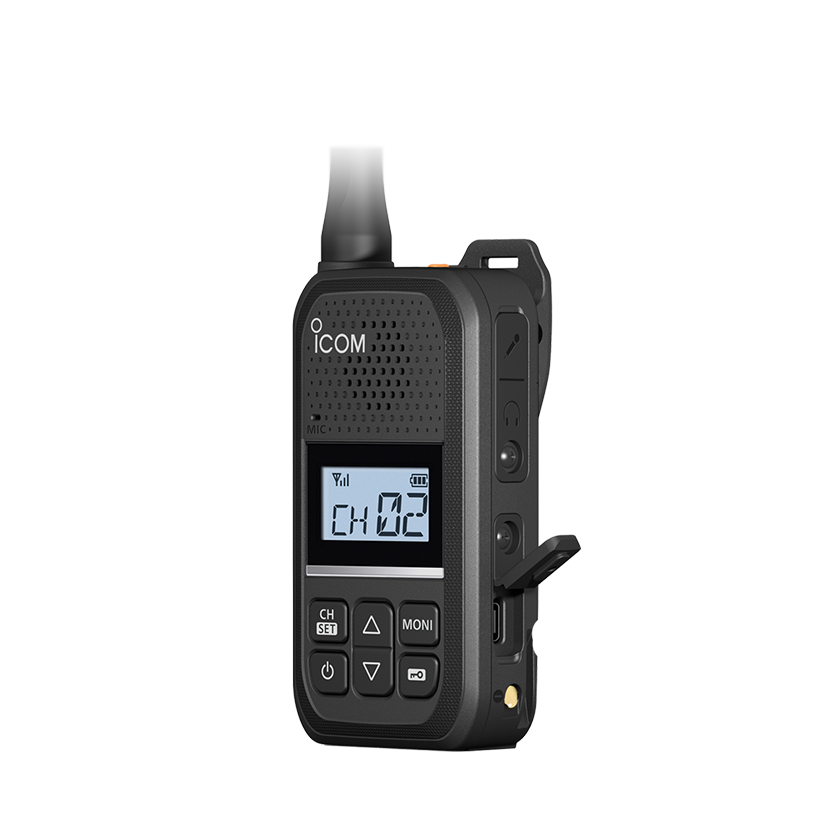

Compact body with dimensions of 94.0* x 50.0 x 26.7 mm and weighing only 157 g,  0.5 W output power, 16 channels and up to 21 hours of operation. Rugged looks with IP54, MIL-STD810 weather proofing, and user-friendly operations. Versatility with various headset and earphone-microphone options and VOX hands-free functions. The elegant and smart IC-U20SR fits in the palm of your hand and strongly supports your business.

* Excluding antenna

Compact Size and Smart Rugged Design with Water Resistance

The compact body fits in the palm of your hand, adopting an elegant and smart design like nothing before.  This sturdy handheld transceiver meets user-friendly operability with a new front panel layout design, hands-free VOX function, Voice Guide when switching channels, IP54 dust and water resistance meeting MIL-STD810G with a light-weight and rugged polycarbonate case.







21 Hours Operation with Detachable Type Battery

The BP-304A, 2350 mAh Lithium-Ion battery can supply 21-hour long operation that can be used continuously during day and night work shifts without battery replacement. The BP-304A can be fully charged  with the BC-262, Charging Cradle, in approximately 5 hours.



USB Charging

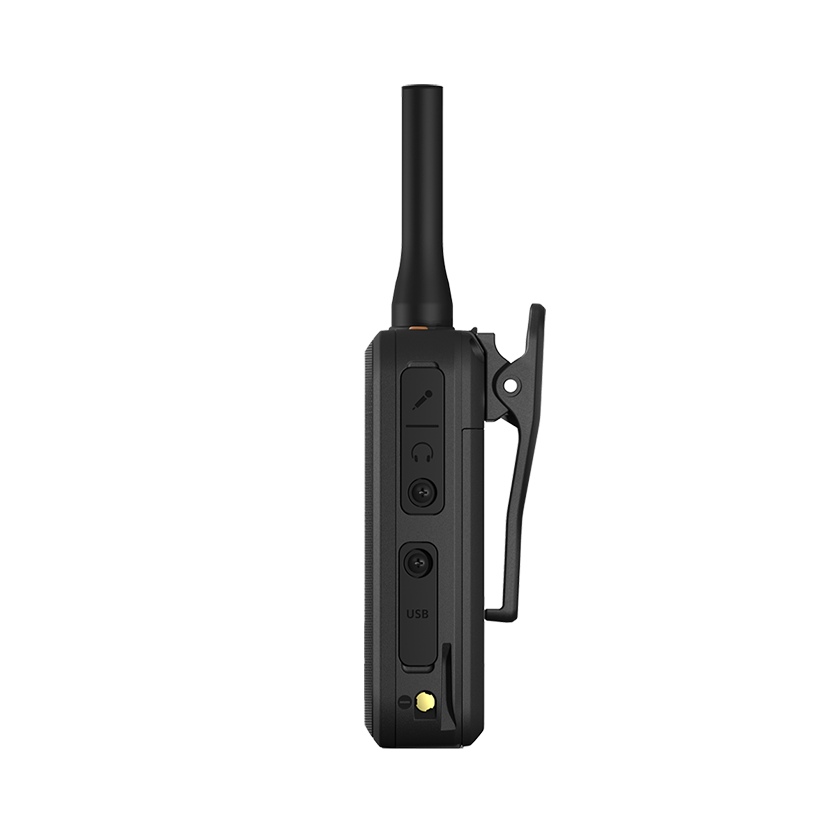

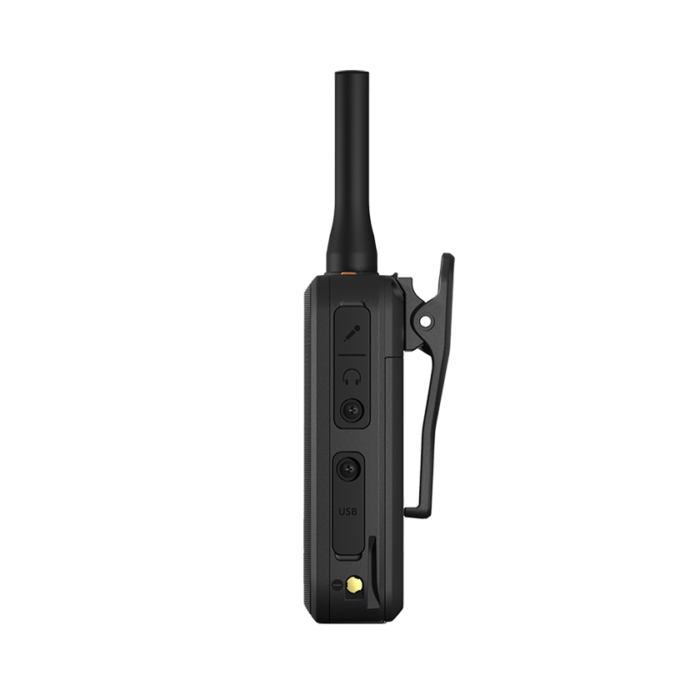

Three types of battery charging can be done. In addition to charging with the BC-262  Charging cradle, there are direct radio body connection charging with USB Type-C™ cable* and charging BP-304A with BC-264 Battery charger.

* USB Type-C™ cable is for only battery charging, with no data transfer function.



PTT from Headset and Earphone Microphone

There are a variety of headsets, microphones and earphone-microphones that can be used in various work situations. The built-in VOX function provides convenient hands-free operation with the HS-94, HS-95, HS-97 and OPC-2006LS  optional items.



Other Features

  • A high definition and clear display with 4 Digits with 14 Segments
  • A loud 600 mW AF output
  • Includes 2 programmable keys
  • CTCSS / DTCS tone squelch
  • QR code for product authenticity check

Supplied Accessories

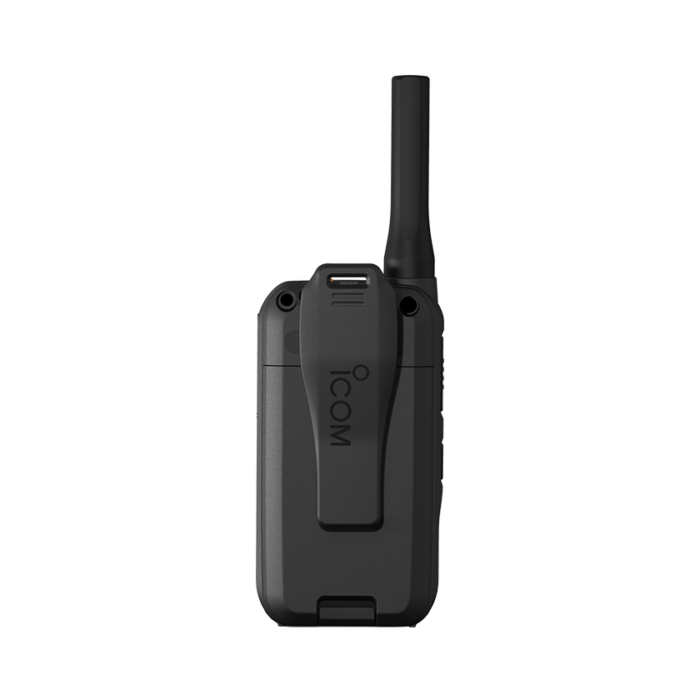

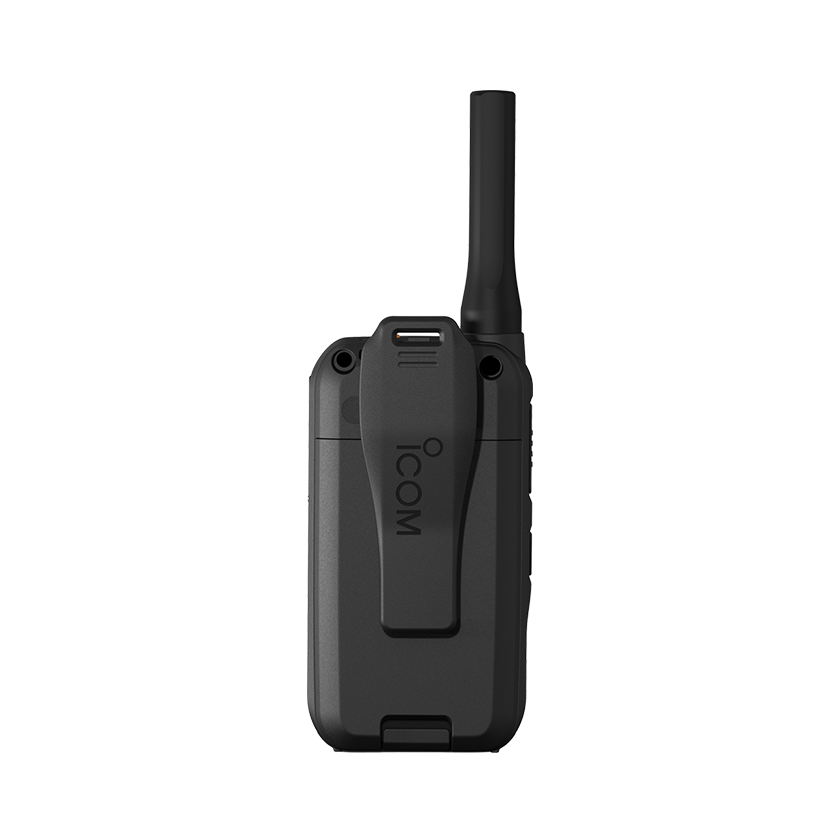

MB-127 Belt Clip / BP-304A Battery Pack / BC-262 Charging Cradle / USB Type-C™ Cable



Partner Product

Icom affiliated IJKP Products


IJKP-HM-1LS-OW
Earphone Microphone
Acoustic Type Earphone


IJKP-HM-2LS-OW
Earphone Microphone
C Type Earphone


IJKP-HM-3LS-OW
Earphone Microphone
D Type Earphone



Usage examples

Industry

Construction, Warehouses, Factories, and Carparks
The polycarbonate housing is sturdy, light and rugged meets IP54 dust and water proof and MIL-STD810G. And BP-304A, 2350 mAh Lithium-Ion battery supports continuous operation for 21 hours.

Hospitality, Shop and Institiution

Hotels, Restaurants, Retail stores, Supermarkets, Churches and Schools
Compact size and light weight body allows easy opration for your work. And variety of microphones, headsets, and earphone-microphones and VOX function assist in focusing on your work.

Outdoor

Camping, Hiking and Biking
With a compact size and light weight body, you can take it anywhere. With IP54 dust and water proof construction, you can use it outdoors confidently.
